Registrador de Datos HOBO Pendant® G (aceleración e inclinación)

Características destacadas

Medición de aceleración e inclinación de bajo coste
Carcasa impermeable para aplicaciones húmedas o subacuáticas

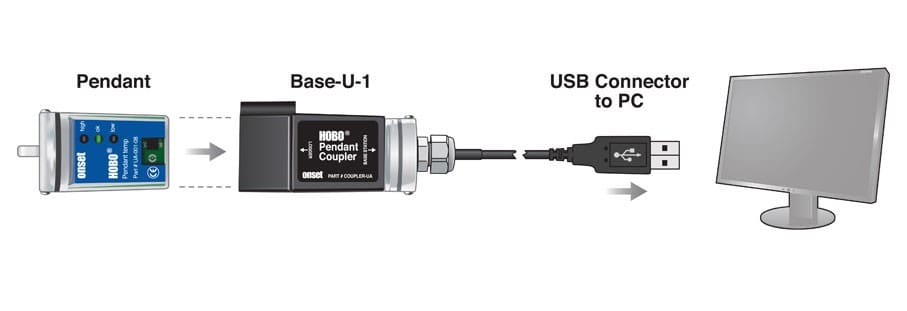

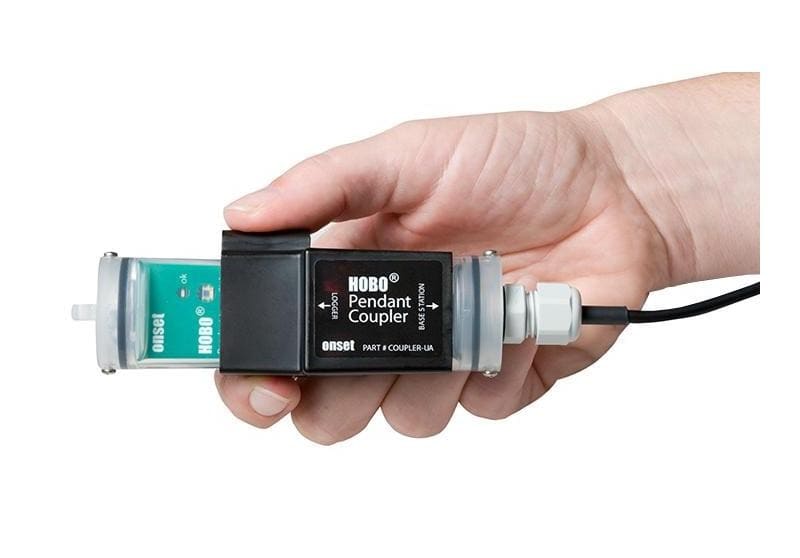

Lectura de datos en menos de 30 segundos a través de una rápida interfaz óptica USB

El registrador de datos UA-004-64 soporta las siguientes mediciones: Aceleración e inclinación

Measurement Range: ± 3 g; 29.4 m/s² (96.5 ft/s²)
Accuracy:
± 0.075 g; 0.735 m/s² (2.41 ft/s²) at 25°C (77°F);
± 0.105 g; 1.03 m/s² (3.38 ft/s²) from -20°C to 70°C (-4°F to 158°F)
Resolution: 0.025 g; 0.245 m/s² (0.8 ft/s²)

Logging Interval
In Normal mode: 1 second to 18 hours, 12minutes, 15 seconds
In Fast mode: 0.01 seconds (100 Hz) to 0.99 seconds (1.01 Hz)
Time accuracy: ± 1 minute per month at 25°C (77°F)

Operating Range
In water/ice : -20° to 50°C (-4° to 122°F)
In air: -20° to 70°C (-4° to 158°F)
Water depth rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F)

Battery life
In Normal mode: 1 year typical use
In Fast mode: 7 days logging at 0.01 seconds (100 Hz)
Battery Type: CR2032

Memory: 64K bytes (approximately 21.8K combined x-, y-, and z-axis readings or events)
Materials: Polypropylene case; stainless steel screws; Buna-N o-ring
Weight: 18 g (0.6 oz)
Dimensions: 58 x 33 x 23 mm (2.3 x 1.3 x 0.9 inches)
Environmental Rating: IP68

The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
