Precio bajo consulta

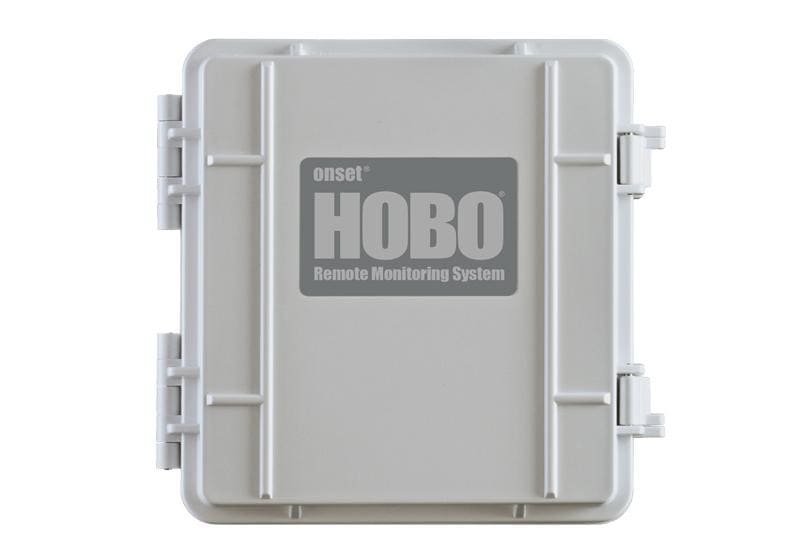

El HOBO RX3000 es la estación remota de registro de datos de última generación de Onset que proporciona acceso instantáneo a datos ambientales específicos del sitio en cualquier lugar y en cualquier momento a través de Internet. La nueva estación combina la flexibilidad y la calidad de los sensores de los sistemas más caros, una pantalla LCD integrada y la comodidad del funcionamiento plug-and-play. El RX3000 tiene cuatro sistemas configurables, que se pueden configurar a continuación, y que consisten en los siguientes números de artículo: RX3001-00-01, RX3002-00-01, RX3003-00-01 y RX3004-00-01.
La estación RX3000 es la base para el sistema Inalámbrico HOBOnet, una solución rentable y escalable para la gestión de cultivos, investigación medioambiental y las instalaciones de invernaderos.
Guarda este producto y los próximos que visite en este navegador, hasta ocho, durante 30 días. Puede desactivarlo en “Historial”, en el pie de página.
Historial activo en este navegador. Historial
The RX3000 data logger supports the following measurements:
| Specification | Details |
|---|---|
| Connector | One RJ45 / 100BaseT |
| Specification | Details |
|---|---|
| Network Standards | IEEE 802.11b/g/n |
| Frequency Range | 2.412–2.484 GHz |
| Antenna Connector | 1, no diversity supported |
| Data Rates | 1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g); 802.11n, HT20 MCS0 (6.5 Mbps) to HT20 MC87 (65 Mbps) |
| Number of Selectable Radio Subchannels | Up to 14 channels; profiles available include USA, France, Japan, Spain, Canada, and “Other” (multiple countries) |
| Radio Modulations | OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM |
| Security | WEP 64/128, WPA-PSK, AES end-to-end encryption |
| Maximum Receive Level | -10 dBm (with PER <8%) |
| Receiver Sensitivity | -72 dBm for 54 Mbps; -87 dBm for 11 Mbps; -89 dBm for 5.5 Mbps; -90 dBm for 2.0 Mbps; -92 dBm for 1.0 Mbps |
| Model | Antenna |
|---|---|
| RX3003 | Penta band |
| RX3004 | 4G LTE |
| Specification | Details |
|---|---|
| Operating Range | -40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC |

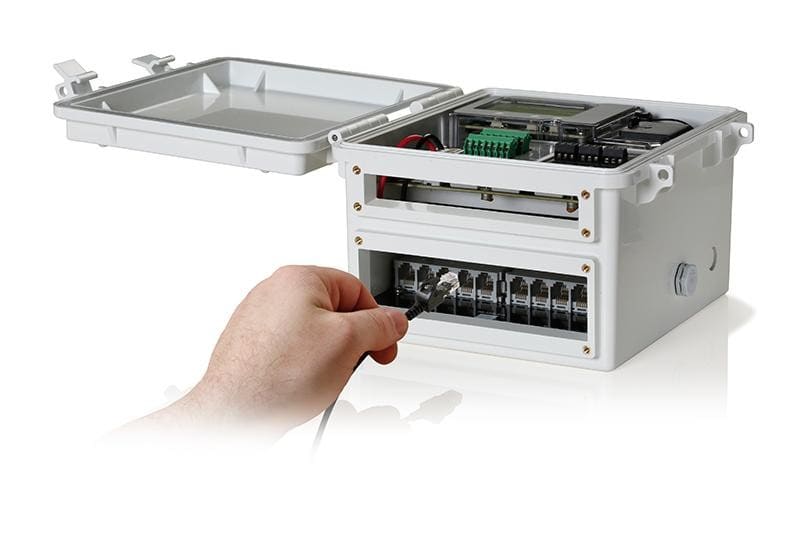

| Smart Sensor Connectors | 10 |
| Smart Sensor Network Cable Length | 100 m (328 ft) maximum |
| Smart Sensor Data Channels | Maximum of 15. Some smart sensors use more than one data channel; see sensor manual for details |

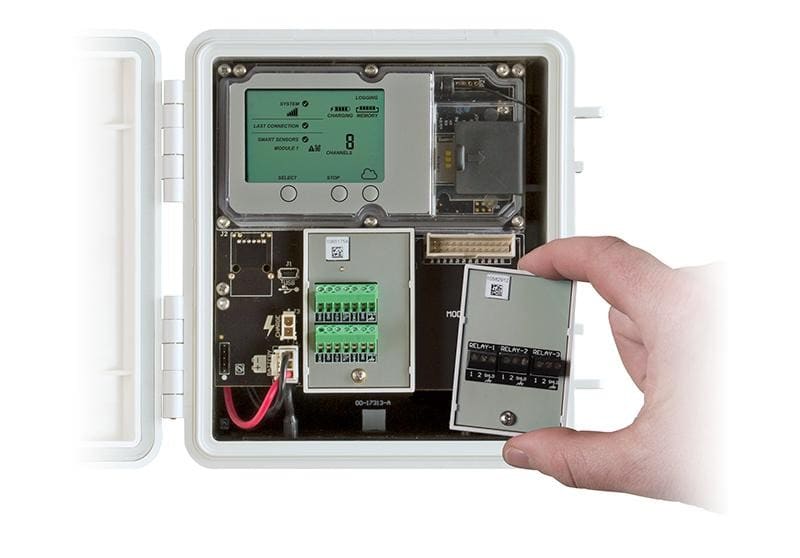

| Module Slots | 2 |
| Logging Rate | 1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) to 18 hours |
| Time Accuracy | ±8 seconds per month in the 0° to 40°C (32°F to 104°F) range; ±30 seconds per month in the -40° to 60°C (-40°F to 140°F) range |
| Battery Type / Power Source | 4 Volt, 10 AHr, rechargeable sealed lead-acid battery. External power required using one of these options: AC power adapter (AC-U30), solar panel (SOLAR-xW), or external power source from 5 V DC to 17 V DC with external DC power cable (CABLE-RX-PWR) |
| Rechargeable Battery Service Life | Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F). Operation outside this range will reduce battery service life |
| Memory | 32 MB, 2 million measurements, continuous logging |
| Alarm Notification Latency | Logging interval plus 2–4 minutes, typical |
| Enclosure Access | Hinged door secured by two latches with eyelets for use with user-supplied padlocks |
| LCD | Visible from 0° to 50°C (32°F to 122°F). The LCD may react slowly or go blank at temperatures outside this range |
| Materials | Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber; Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc dichromate finish |
| Size | 18.6 × 18.1 × 11.8 cm (7.3 × 7.1 × 4.7 in.); see diagrams on next page |
| Weight | 2.2 kg (4.85 lb) |
| Mounting | 3.8 cm (1.5 inch) mast or wall mount |
| Environmental Rating | Weatherproof enclosure, NEMA 4X (requires proper installation of cable channel system) |
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
| Model | Certification / Approval |
|---|---|
| RX3002 | FCC ID: R68XPICOW; IC ID: 3867A-XPICOW |
| RX3003 | FCC ID: QIPEHS6; IC ID: 7830A-EHS6; approved for use in Taiwan and Japan |
| RX3004 | FCC ID: QIPPLS62-W; IC ID: 7830A-PLS62W |
| Model | Technology / Frequency Bands |
|---|---|
| RX3003 | GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz; UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz |
| RX3004 | GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz; UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz; LTE: Twelve band 700/800/850/900/1800/1900/2100/2600 MHz |
| Model | Antenna |
|---|---|
| RX3003 | Penta band |
| RX3004 | 4G LTE |
| Característica | Valor |
|---|---|
| Connector | One RJ45/100BaseT |
| Network Standards | IEEE 802.11b/g/n |
| Frequency Range | 2.412–2.484 GHz |
| Antenna Connector | 1, no diversity supported |
| Data Rates | 1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g); 802.11n, HT20 MCS0 (6.5 Mbps) to HT20 MC87 (65 Mbps) |
| Number of Selectable Radio Subchannels | Up to 14 channels; profiles available will include USA, France, Japan, Spain, Canada, and “Other” (multiple countries) |
| Radio Modulations | OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM |
| Security | WEP 64/128, WPA-PSK, AES end-to-end encryption |
| Maximum Receive Level | -10 dBm (with PER <8%) |
| Receiver Sensitivity | -72 dBM for 54 Mbps, -87 dBm for 11 Mbps, -89 dBm for 5.5 Mbps, |
| Wireless Radio | **RX3003:** |
| Antenna | **RX3003:** Penta band |
| Operating Range | -40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC |
| Smart Sensor Connectors | 10 |
| Smart Sensor Network Cable Length | 100 m (328 ft) maximum |
| Smart Sensor Data Channels | Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details) |
| Module Slots | 2 |
| Logging Rate | 1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) to 18 hours |
| Time Accuracy | ±8 seconds per month in 0° to 40°C (32°F to 104°F) range; |
| Battery Type/Power Source | 4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these options: AC power adapter ([AC-U30](<https://www.onsetcomp.com/products/power/ac-u30>)), solar panel (SOLAR-xW), or external power source 5 V DC to 17 V DC with external DC power cable ([CABLE-RX-PWR](<https://www.onsetcomp.com/products/accessories/cable-rx-pwr>)) |
| Service Life | Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F); operation outside this range will reduce the battery service life |
| Memory | 32 MB, 2 million measurements, continuous logging |
| Alarm Notification Latency | Logging interval plus 2–4 minutes, typical |
| Enclosure Access | Hinged door secured by two latches with eyelets for use with user-supplied padlocks |
| LCD | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Materials | Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber; Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc dichromate finish |
| Size | 18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.); see diagrams on next page |
| Weight | 2.2 kg (4.85 lb) |
| Mounting | 3.8 cm (1.5 inch) mast or wall mount |
| Environmental Rating | Weatherproof enclosure, NEMA 4X (requires proper installation of cable channel system) |
LI-COR (HOBO, InTemp, LI-COR) · HOBOnet
El NUEVO Sistema de Monitorización de Campo HOBOnet de Onset proporciona una solución rentable y escalable para la monitorización de las condiciones de campo a través de la web para aplicaciones tales como la gestión de cultivos, investigación y operaciones…
LI-COR (HOBO, InTemp, LI-COR) · AC-U30-EU
Cargador de batería para CA - con capacidad para 240V, 50Hz de alimentación de entrada
LI-COR (HOBO, InTemp, LI-COR) · RXMOD-A1
El módulo analógico opcional tiene cuatro entradas analógicas que soportan la tensión de excitación, la escala y las mediciones estadísticas. Estas cuatro entradas de sensor de un solo extremo se configuran a través de HOBOlink. Se requiere un HOBO RX3000…

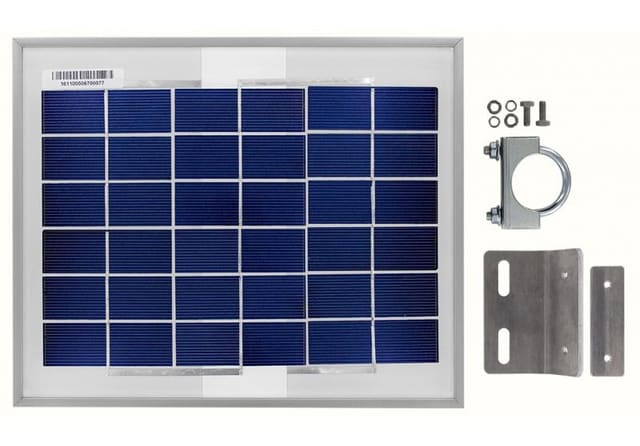

LI-COR (HOBO, InTemp, LI-COR) · SOLAR-5W
