Registrador de Datos HOBO H22 de energía (hasta 15 canales)

Características destacadas

El registrador de datos más flexible de Onset registra hasta 15 canales de más de una docena de mediciones
Proporciona excitación de 12v para sensores de otros fabricantes
Los sensores inteligentes preconfigurados le permiten un inicio rápido

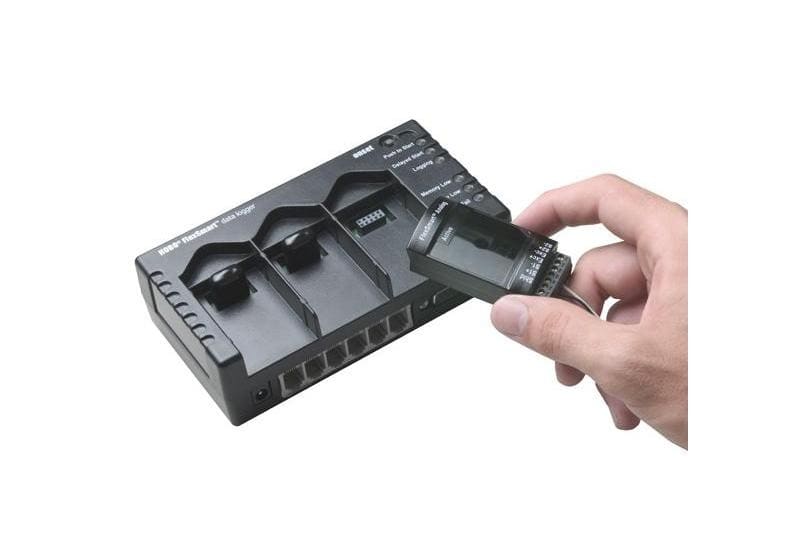

Los módulos acondicionadores de señal retienen las configuraciones hasta que usted las cambia, lo que proporciona una comodidad "plug-and-play" para los sensores de uso corriente.

El registrador de datos H22-001 soporta las siguientes mediciones:
4-20mA, corriente alterna, tensión alterna, velocidad del aire, amperios hora (Ah), Dióxido de Carbono, Caudal de Aire Comprimido, Corriente DC, Voltaje DC, Presión diferencial, presión manométrica, kilovatios hora (kWh), kilovatios (kW), Factor de potencia (PF), entrada de pulsos, humedad relativa, temperatura, Compuesto orgánico volátil, Voltamperometría Reactiva, Voltamperometría Hora Reactiva, Voltamperometría (VA),
Caudal de agua, vatios hora (Wh) y Vatios (W)

Especificcaciones

Operating range:
-20° to 50°C (-4° to 122°F) with alkaline batteries
-40° to 60°C (-40° to 140°F) with lithium batteries
Sensor inputs: Three FlexSmart multi-channel modules and up to 6 Smart Sensors (which may have multiple parameters/channels)

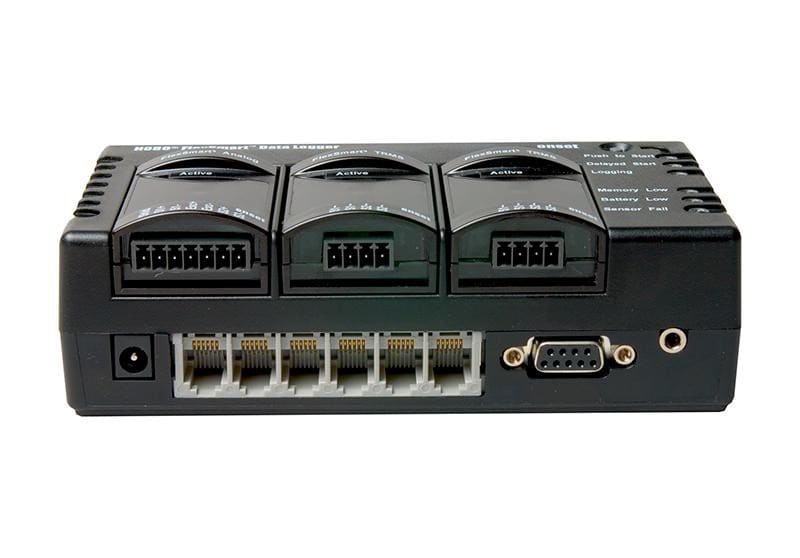

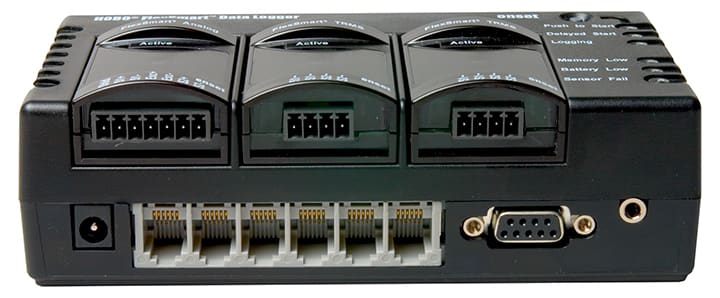

Sensor connectors: Six RJ-12 Smart Sensor jacks plus 3 FlexSmart module slots
Communication: RS-232 via 3.5 mm serial port or/and 9-pin D-Sub connector
Dimensions: 15.6 cm x 8.4 cm x 4.6 cm (6.13" x 3.31" x 1.81")
Weight: 435 g (15.23 oz) with batteries 238 g (8.33 oz) without batteries
Memory: 512K nonvolatile flash data storage
Memory modes: Stop when full; wrap when full
Operational indicators: Six indicators provide logging and sensor network status
Logging interval: One second to 18 hours, user-specified interval (2-second minimum for two-channel S-FS-TRMSA operation)
Sensor excitation: 12 V DC at 200 mA total, with user-programmable warmup time on a per-channel basis
Battery life: One year typical use (up to 75 mA excitation with 10-minute or longer logging Interval and 1-second warmup time)
Battery type: Eight standard AA alkaline batteries included (for operating conditions -20°C/-4°F to 50°C/122°F); optional AA lithium batteries available for operating conditions of -40° to 60°C (-40° to 140°F).
External power: Supports optional 13.6 V DC regulated AC Wall Adapter Connector. Internal batteries may remain installed. Alternatively, an automotive battery or 9-12 V DC regulated Wall Adapter may be used, but it is recommended to remove the internal batteries since they will discharge to the level of the external supply.
Time accuracy: 0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)
Logging mode: Immediate, timed delay, or trigger (button-push) start options; supports sampling intervals for some sensors
Data communication: Current readings while logging; read out while logging; read out when stopped

This product meets CE specification EN61326 criterion C for ESD, criterion C for Radiated Immunity, criterion B for Fast Transient, criterion A for Conducted Immunity, and criterion A for Power Frequency Magnetic Fields. To minimize measurement errors due to ambient RF, use the shortest possible probe sensor cable length.
