Price on request
Thermocouple temperature data logger is a kind of high precision instrument which have pass all strict calibrations and professional testing via FLUKE instrument. Support 8 types thermocouples( K,J,E,T,R,S,N ,B), including thermocouple temperature compensation function and can measure temperature from -200 to 1800℃.
Saves this product and the next ones you view in this browser, up to eight, for 30 days. You can disable it under “History” in the footer.
History is enabled in this browser. History

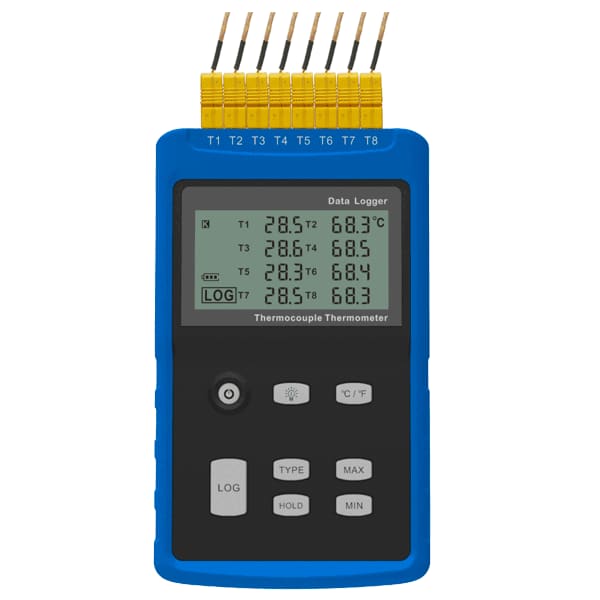

Large LCD display 8 channels data.
Support 8 types thermocouple:K,J,E,T,R,S,N , B,Wide variety of interchangeable Thermocouple Probes.
Switchable °C or °F with LCD Display.
Download collected data through USB interface.
Memory for 86000 readings.
Freely selectable measurement cycle from 2 second to 24 hour.
Professional software for analysis.
| Thermo-hygrometer Model list Model | EICS220-T2 | EICS220-T8 |
|---|---|---|
| Temperature Accuracy | ±1℃±5‰ | |
| Temperature Measurement Range | -200~+1800℃ | |
| Sensor type | External thermocouple | |
| Channel | 2 | 8 |
| Resolution | 0.1°C | |
| Automatic Recording Capacity | 8,6000 | |
| Log Interval | 2s~24h | |
| Weight | 320g | |
| Battery | 2 months | |
| Weight | 9V Block Battery *1 | |
| Dimensions | 158mm * 95mm * 35mm | 202mm * 165mm * 58mm |
| LCD size | 65mm*53mm | 79mm*50mm |

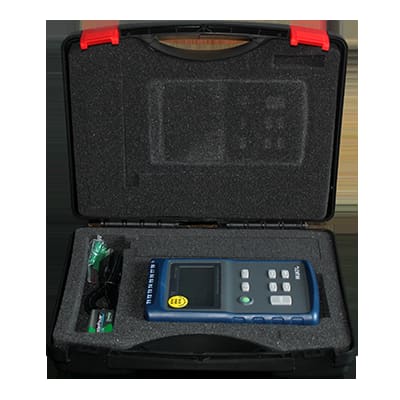

| Accessories | Battery, user manual,USB cable,carry case, software |
| Property | Value |
|---|---|
| Temperature Accuracy | ±1℃±5‰ |
| Temperature Measurement Range | -200~+1800℃ |
| Sensor type | External thermocouple |
| Resolution | 0.1°C |
| Automatic Recording Capacity | 8,6000 |
| Log Interval | 2s~24h |
| Weight | 320g |
| Battery | 2 months |
| Accessories | Battery, user manual,USB cable,carry case, software |
