Price on request

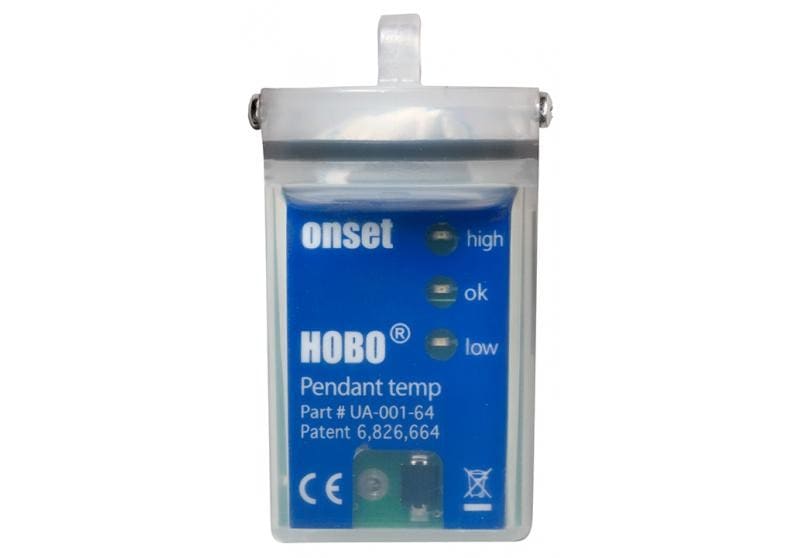

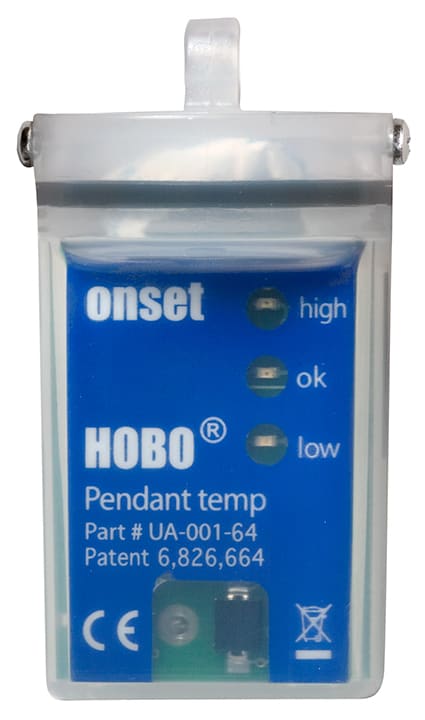

A miniature, waterproof one-channel temperature data logger, this model is value-priced for short-term shipping applications or long-term deployment. Data logger alarm LEDs flash if temperatures have exceeded user-set levels and delay options, and provide visible verification that temperatures have been within the desired range throughout deployment.
Saves this product and the next ones you view in this browser, up to eight, for 30 days. You can disable it under “History” in the footer.
History is enabled in this browser. History
Low-cost temperature with alarm indication or light intensity
Waterproof housing for wet or underwater use

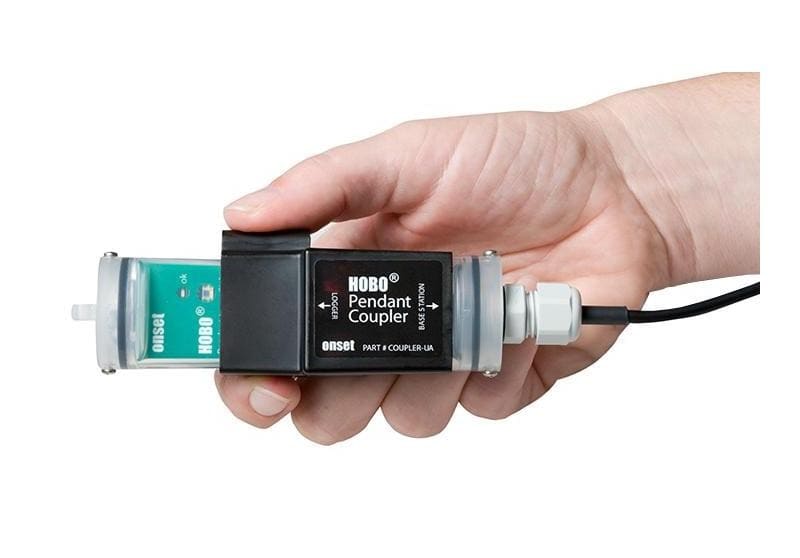

Data readout in less than 30 seconds via fast Optic USB interface
The UA-001-64 data logger supports the following measurements: Temperature and Water Temperature
Measurement range: -20° to 70°C (-4° to 158°F)
Alarms: High and low alarms can be configured for total amount of contiguous or non-contiguous time outside of user-defined limits between -20° and 70°C (-4° to 158°F)
Accuracy: ± 0.53°C from 0° to 50°C (± 0.95°F from 32° to 122°F), see Plot A in manual
Resolution: Temperature: 0.14°C at 25°C (0.25°F at 77°F), see Plot A in manual
Drift: Less than 0.1°C/year (0.2°F/year)
Environmental Rating: Top end: NEMA 6, IP67; Sensor end: IP68
Response Time
Airflow of 2 m/s (4.4 mph): 10 minutes, typical to 90%
Water: 5 minutes, typical to 90%
Time accuracy: ± 1 minute per month at 25°C (77°F), see Plot B in manual
Operating Range
In water/ice: -20° to 50°C (-4° to 122°F)
In air: -20° to 70°C (-4° to 158°F)
Water depth rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F), see Plot C in manual
NIST traceable certification: Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F)
Battery life: 1 year typical use
Battery Type: CR2032
Memory
UA-001-08: 8K bytes (approximately 6.5K sample and event readings)
UA-001-64: 64K bytes (approximately 52K sample and event readings)
Materials: Polypropylene case; stainless steel screws; Buna-N o-ring
Weight: 15.0 g (0.53 oz)
Dimensions: 5.8 x 3.3 x 2.3 (centimeters) and 2.3 x 1.3 x 0.9 (inches)
Environmental Rating: IP68
The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
No published specifications for this product.
